Description

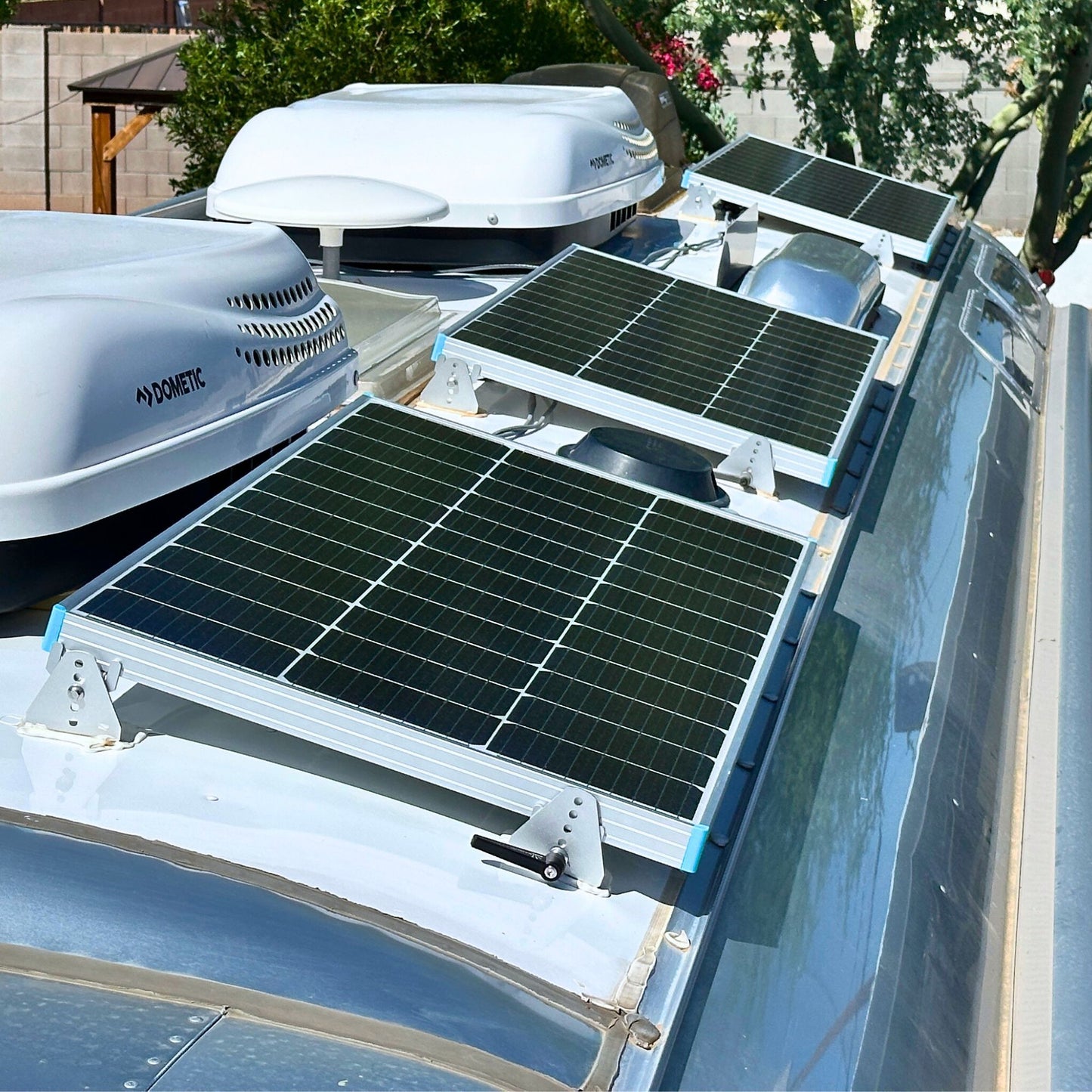

camper solar set Radius Mount™ – Pivoting Quick Release, Drill-Free VHB Solar Panel Mou – Riveted MarketA smarter way to mount solar panels on curved RV roofs. No drilling. All access. The Radius Mount system is a patent pending, pivoting, drill free solar panel mounting solution purpose built for Airstreams and other RVs with curved roofs. Unlike traditional solar brackets that require permanent drilling and restricted roof access, Radius Mount uses high strength VHB adhesive to secure each anodized aluminum bracket. This creates a strong, weatherproof
A smarter way to mount solar panels on curved RV roofs. No drilling. All access.
The Radius Mount™ system is a patent-pending, pivoting, drill-free solar panel mounting solution purpose-built for Airstreams and other RVs with curved roofs. Unlike traditional solar brackets that require permanent drilling and restricted roof access, Radius Mount uses high-strength VHB adhesive to secure each anodized aluminum bracket. This creates a strong, weatherproof bond without making holes in your roof.
Need access to your roof? Just pull the built-in ratcheting lever and tilt the solar panel up. Whether you're performing maintenance or trying to reach vents or your A/C unit, Radius Mount makes it easy.
This is a clean, secure, and flexible solar mounting system designed for serious RV travelers.
Key Features
Pivoting Access
Lift the panel easily with a tool-free ratcheting lever to access roof-mounted components like vents or A/C units.
No-Drill Mounting
Mount directly to your roof using industrial-strength VHB tape. No screws or holes required. (Screw holes are included if you prefer that method.)
Designed for Curved Roofs
Custom bracket geometry fits the curves of Airstream and other RV roofs, providing a clean and low-profile look.
Tool-Free, Quick Release Lever Lock
The built-in ratcheting lever allows one-handed operation for quick lift or lock-in-place adjustments.
Durable, Lightweight Materials
Brackets are made from high-quality, weather-resistant anodized aluminum with stainless steel hardware for long-term outdoor use.
Universal Fit
Works with most rigid 50W to 400W solar panels. Brackets align with standard frame holes or can be adapted with custom drilling.
Install in About 30 Minutes
- Clean the roof with IPA to remove oils and dust.
- Apply VHB tape to the base of each roof-side bracket.
- Mount the panel-side brackets to your solar panel frame and connect each bracket pair using the included bolt hardware and front-mounted ratcheting lever.
- Line up on roof and press firmly.
- Apply Dicor sealant on and around the foot of the brackets to weather seal the VHB tape.
- Allow at least 72 hours for VHB tape and Dicor to fully cure before driving.
Panel Weight and Size Guidelines
| Mounting Type | Max Panel Weight | Recommended Panel Size | Notes |
|---|---|---|---|
| VHB Adhesive (4 Brackets) | Up to 30 lbs (13.6 kg) | Up to 1.0 m² (10–11 sq ft) | Designed for flat-mounted panels and tested for wind speeds up to 80 mph under highway conditions. Allow 72 hours of adhesive cure before travel. |
| Bolted to Aluminum Roof (4 Brackets) | Up to 50 lbs (22.7 kg) | Up to 1.2 m² (13 sq ft) | Use the optional stainless bolt kit with large fender washers or backing plates under the roof skin. Add two more brackets for up to 70 lbs and 1.6 m² (17 sq ft). |
| Bolted to Plywood Roof (4 Brackets) | Up to 60 lbs (27.2 kg) | Up to 1.6 m² (17 sq ft) | When using the optional bolt kit, ensure a minimum ½ inch plywood substrate. Install with washers or backing plates. Add two more brackets for up to 90 lbs and 2.0 m² (22 sq ft). |
Always ensure panels are fully secured before travel and clear snow, ice, or debris before extended parking or driving.
Versatile RV Use Cases
- Install flush for a clean travel-ready look
- Lift up when you need to access roof-mounted components
- Ideal for Airstreams, vans, skoolies, curved trailers, and also works on flat or sloped roof applications
Disclaimer
Airstream® is a registered trademark of Airstream, Inc., a subsidiary of Thor Industries, Inc. Riveted Market is an independent manufacturer of aftermarket products designed for use with Airstream travel trailers. Riveted Market is not affiliated with or endorsed by Airstream or Thor Industries. References to Airstream are for compatibility and informational purposes only.
